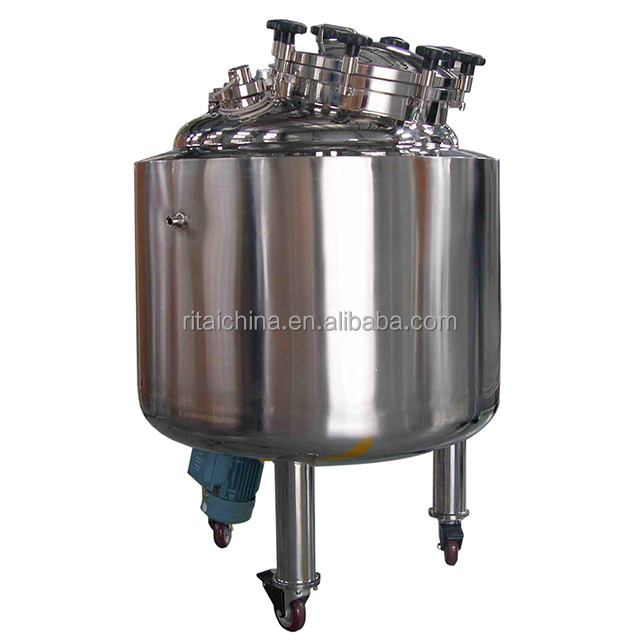

Product technical description:
Specification: 30L~50000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: Top mechanical agitator (propeller, spiral and anchor or others)
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool
Components: vent filter, temp. gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to client’s detail requirement.
Manufacture standard for pressure vessel: ASME, PED 97/23/EC, GB150-2011
Packaging: plywood case
Shipping: by sea or by air
We offer design, customization, manufacture, and maintenance services, etc.
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
