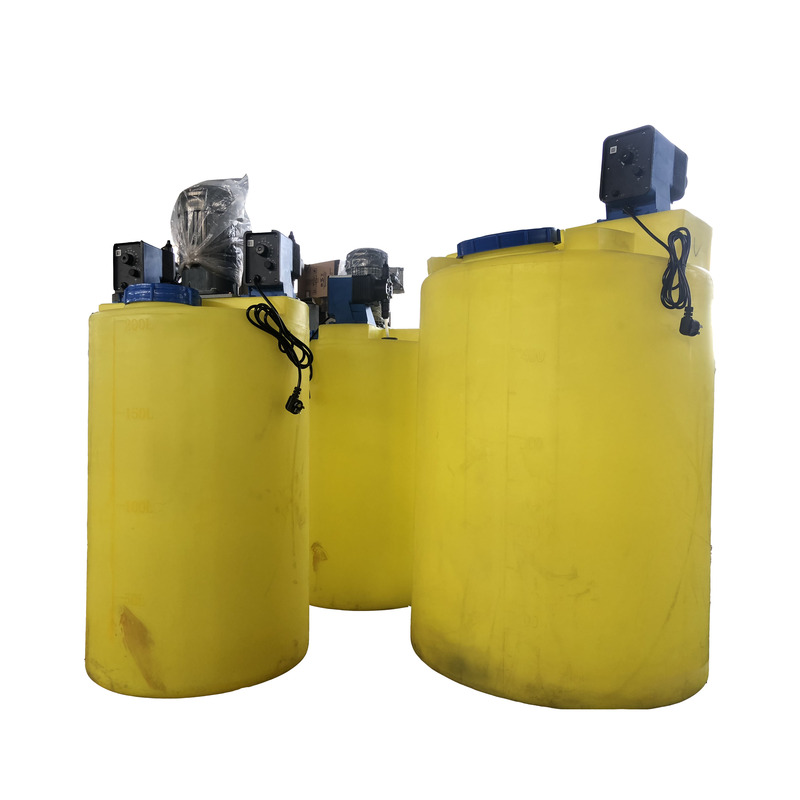

Hotels LLDPE Rotation Mount Chemical Dosing Tank With Mixers

Introduction

dosing device is mainly composed of solution tank,stirring tank (with sirrer),metering pump ,level gauge,electronic control ,piprlinr ,valve ,safety valve,staircase etc (which can confihuration according to client's actual requirement)

    according to required agentia concentration ,preparation in stirring tank ,inject it into solution tank after stir well by stirrer ,using metering pump deliver the preparation solution to dosing point or appointed system .the whole set of dosing system with the charateristic of compact structure ,safety simple ,operation using convenient etc.this device can be targeted design according to client's different processing requirement ,realize different functions by configuration necessary components.

It is one-shot rotomoulding tank which adopts imported PE materials
It is easy to clean and good at corrosion--resistant.
It is portable and used in many field like water treatment envirement protection, medical , ect.

Feature:
Main material:LLDPE food-grade raw plastic
Common color:white,bule,black,light yellow
With a complete range of size,scientific design and high quality
Clean and safe,without poison
Acid and alkali resistant
Application : For chemical , water treatment ,electron ,textile ,printing & dying ,
                       Food industrial , medical, sluice for fire protection, agriculture Irrigation etc.

According to required agentia concentration,preparation in stirring tank,inject it into solution tank after stir well by stirrer,using metering pump deliver the prepared solution to dosing point or appointed system.

The whole set of dosing system with the characteristic of compact structure,safety simple,operation using  concenient etc.This device can be targeted design according to client's different processing requirement,

realize different functions by configuration neccessary components.

Specifications

Application:

 in water supply ,water draining processing procedure,it need dosing all kinds of chemical agentia as coagulation ,flocculation ,coagulant aids and didinfection sterilization ,to realize the purpose of water purification .this agentia has solid particles ,liquids and colloid etc ,it can get the best effect by dissolve,dilute and ration dosing .suitable for water supply ,water draining ,water quality purification ,sewage treatment and chemical industry ,petroleum,power plant ,textile ,papermaking ,medical etc industry projects.

Characteristic:

Reduction motor drive, screw - propelled vane or two blade plain vane.
a) Mixing ability:100-5000L,motor power100~2200W.
b) Working condition: barometric pressure,70ºC.
c) Structuralmaterial:304 stainless steel,316 stainless steel,316Lstainless steel,lined with epoxy resin,spray PTFE.
d) Electrical specification:380V-50Hz-4p,IP55.
e) Selection function:special motor,lined with epoxy resin,spray PTFE, paddle vane.
f) Working restriction:Do not start upduring the emptying process and shear sensitive material.
