特徴

仕様

Mixer Type: Agitator

Barrel Volume (L): 1000

Material Processed: Plastics, Chemicals, Food, Medicine

Max. Loading Volume (L): 1000 L

Range of Spindle Speed(r.p.m): 15 - 85 r.p.m

Max. Loading Capacity: 1000

Weight (KG): 300 KG

Material: SUS304, SUS304L, SUS316, SUS316L

Condition: New

Product Type: herbal plant

Application: Liquid

Additional Capabilities: mixing

Voltage: 380V, 3P, 50Hz

Dimension(L*W*H): 1150*1150*2350mm

Power (kW): 3.5 kW

Warranty: 13 mongths after the B/L date

Key Selling Points: Multifunctional

Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops

Showroom Location: Canada, Turkey, United Kingdom, United States, Germany, Brazil, Indonesia, Mexico, Argentina, Chile, Colombia, Romania, South Africa, Malaysia, Australia, Morocco, None

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor, Gear, Pressure vessel, Gearbox, Pump, Bearing, Engine

name: 1000L SUS304 double jacket vacuum mixing tank with agitator

material: S.S.316L / SUS304

volume: customerized

mixing type: electrical powered agitator

standard: saintary

Heating method: Electric Heating Optional

heating source: heat conduct oil or steam

基本情報

お支払配送条件

Packaging Details: 1000L SUS304 stainless steel double jacket vacuum mixing tank with agitator will be packed in standard sea shipment package

Supply Ability: 30 Set/Sets per Month

製品の説明

Summary:

This equipment is mainly used in storing material used in food, medicine, chemical industries and it is indispensable storage equipment for them. You can have it made by SUS304, S,S,316L, stainless steel or Q235B carbon steel. It is reasonably designedm produced by advanced technology and confirm to GMP requirement.

The inner surface of the tank can be mirror polished and the roughness can meet as high as RA <=0.8um. The outer surface is polished as follows: the cover and the bottom will be mirror polished and the remaining part will be mat polished. All the polish meet international standard.

Features:

1. Volume: 100-20000L ( can be customerized).

2. Material: SUS304 or S.S.316L

3. Agitator type: Anchor, frame, or paddle type. ( can be customerized).

4. Agitating Speed: Fixed or convertable ( can be customerized).

5. Sealing device: mechnical sealing or dual-face water cooled sealing( can be customerized)

6. Heating way: Electric (heat conduct oil)heating installed on tank or steam boiler heater which provide steam to tank jacket to heat.

7. Voltage: 100V-480V ( can be customerized).

8. Polish: Inner tank adopts mirror polish,

Tank cover: up and down oval seal adopts mirror polish

Tank body: mirror/mat polish

9. Normal or explsion proof type ( can be customerized).

All of our stainless steel tank can be customerized.

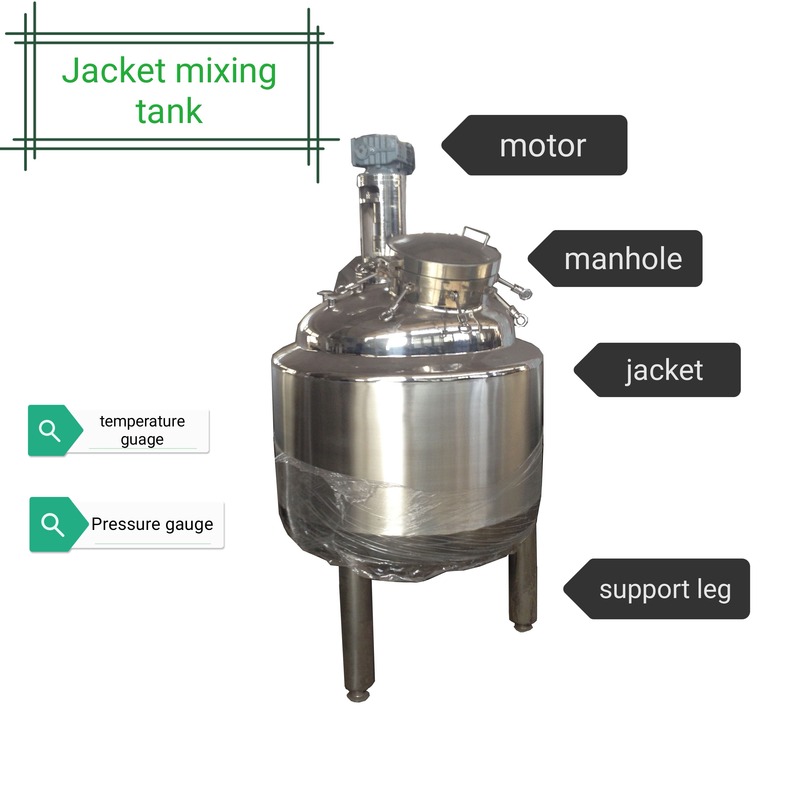

Configuration of the tank:

1. Quick open manhole

2. with 360 degree rotable CIP cleaning ball

3. Thermometer (as per customer requirements)

4. Pressure gauge (as per customer requirements)

5. Ladder (as per customer requirements)

6. Liquid level gauge (as per customer requirements)

7. Agitator type: Anchor, frame, or paddle type.(as per customer requirements)

6. Quantity of Nozzles as per customer needs.

Technical Parameter:

	FYG-100	FYG-200	FYG-500	FYG-1000	FYG-1500
Volume (L)	100	200	500	1000	1500
Diameter (mm)	500	600	800	1000	1200
Tank Pressure(Mpa)	0.25-0.5 (or customerized)
Jacket Pressure(Mpa)	0.30 ( or customerized)
Motor Power (kw)	1.1	1.5	2.2	4.0	4.0
Agitating Speed(r.p.m)	85 rpm or customerized
Tank Type	First Grade Pressure Tank

	FYG-2000	FYG-2500	FYG-3000	FYG-4000	FYG-5000
Volume(L)	2000	2500	3000	4000	5000
Diameter (mm)	1200	1400	1400	1500	1600
Tank Pressure(Mpa)	0.25-0.5 (or customerized)
Jacket Pressure(Mpa)	0.30 ( or customerized)
Motor Power(kw)	4.0	5.5	5.5	5.5	7.5
Agitating Speed(r.p.m)	85 rpm or customerized
Tank Type	First Grade Pressure Tank

Details:

Factory View

Project Show:

Shipping Documents:

Packages:

There are two types of package solutions:

a. wood case package

b. wrapped by black cloth and shipped

wood case package wrapped by black cloth package

RFQ:

Q: Are you a factory or a trading company? A: We are a manufacturer,we are factory, we provide perfect OEM and after-sale service. Q:Where is your factory? A:We are in Wenzhou City, Zhejiang Province,near Shanghai ,Hangzhou, Ningbo and Suzhou. Q: How can I know your machine works well? A: Before delivery, we shall test the machine working condition for you. Q: How can I pay my order? A: We accept T/T, Western Union paying methods ,Etc. Q: Do you have a CE certificate? A: For every model of machine, we can do a CE certificate. Q:How should I do if meet some trouble while using? A:we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory. Q:How long is the guarantee? A:we promise guarantee as one year for non-human damage factor. Q:What's your M O Q ? A:1 set.
