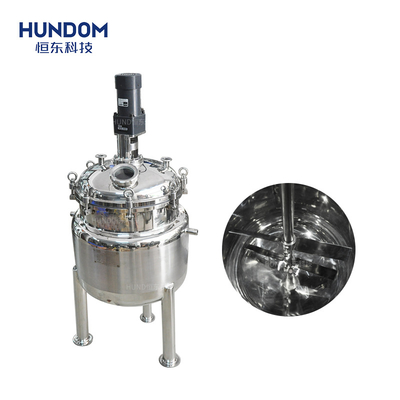

Customized Small Lab 50L SS Enzymolysis Mixing Tank reactor With Electric Heatingl
Reactor is mainly used for the production chains such as hydrolysis,crystallization,distillation, evaporation and storage in the industries of medicine, chemical industry,food and light industry etc. SS reactor is made of SS304 and SS316 etc.stainless steel material.The mixers are divided into anchor type,frame type,oar type and turbo type etc.The rotation mechanism can adopt cycloid pin gear reducer and stepless speed reducer.The sealing mechanism can adopt mechanical sealing.The heating and cooling can adopt jacket, semi-tube and coil structure etc.structures.The heating methods are steam,electrical heating and heat guiding oil to satisfy the technology requirements under different work environment such as anti-acid,anti-high-temperature,anti-abrasion and anti-corrosion.The design and manufacturing can be carried out according to the technology requirements of customers
1. Material :304(L) 316(L)
2. Finish:Mirror or Matt Polish; Ra<0.4um
3. Fully conforms to GMP requirements
4. According to technological requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating.
5. Various forms of blending vanes are suitable for production of different types of products.
6. Easy to discharge, bottom direct discharge or by transfer pump.
Technical Parameters
| Model | HD100 | HD200 | HD300 | HD500 | HD1000 | HD1500 | HD2000 | HD3000 | HD5000 |
| Volume(L) | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 |
| Diameter(mm) | 500 | 600 | 700 | 800 | 1000 | 1200 | 1200 | 1400 | 1400 |
| Pressure(Mpa) | 0.25-0.5 | ||||||||
| Jacket pressure(Mpa) | 0.25 | ||||||||
| Power(kw) | 1.1 | 1.5 | 4 | 4 | 5.5 | 5.5 | 5.5 | 5.5 | 7.5 |
| Speed(r/min) | 63 85 130 180 | ||||||||
