Stainless steel storage tank are widely applied in the beverage, food, dairy,pharmaceutical,chemical and process industrie sused as blending tank,buffer tank, melting tank, high shear mixing tank and emulsifying tank,which cleanable to sanitary standards.
1. It's mainly used in large infusion, water injection, oral solution and deionized water (purified water) storage.
2. Its interfaces are of fast installation clamp style meeting ISO standard.
3. Vertical storage tank has such features: rational design, advanced technology and automatic control, confirming to GMP certification requirements.
4.It's furnished with manhole on the top,convenient for the maintaining,repairing, cleaning, and material feeding as well.
5.It's installed with several quick interfaces,It's installed with several quick interfaces,inlet, liquid level switch and two alternate inlets for other use.
|
Products Name |

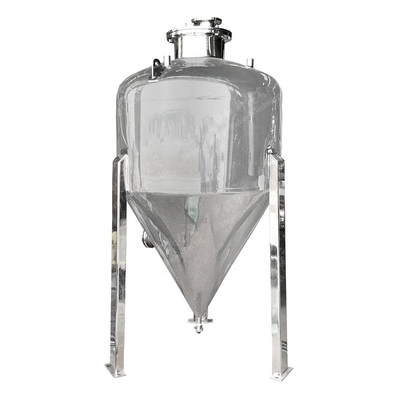

Factory price high quality stainless steel cone bottom chemical mixed liquefied petroleum gas storage tank wine tank |
|
Material |
SS304/SS316L |
|
Jacket: full jacket ,dimple jacket , coil tube |
|
|
Insulation layer: PU / rockwool |
|
|
as to the thickness, we can make it according to your requirement. |
|
|
Description: |
Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |
|
Heating mothed: |
By electricity (oils or water), by steam , circulation heating (hot water or oil) |
|
Configuration: |
1.manhole |
|
2.CIP spraying ball |
|
|
3.adjusting feet |
|
|
4.sight glass |
|
|
5.temperature gauge |
|
|
6.pressure gauge / vacuum gauge |
|
|
7.breather |
|
|
Capacity: |
50L-10000L |
|
Mixer Type: |
High shear Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller ) |
|
Mechanical seal: |
SIC/SiC/EPDM(Standard) |
|
Agitator power: |
0.55kw -75KW |
|
Sealing option: |
Sanitary single mechanical seal/Double mechanical seal with cooling system |
|
Voltage: |
220V -480V |
|
Motor: |
ABB, SIEMENS , SEW , Domestic |
|
Surface treatment: |
Inner polished and outside polished |
|
Availably connection: |
Clamp, Thread Butt weld, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Export Plywood case |
|
Delivery details: |
Usually within 25-30 days after receiving T/T down payment |
Zhengjiang zhonghao machinery co.,Itd. Was found in 1999,before was Tianhe machinery.Is a new comprehensive enterprise with collection of design,development,manufacturing engineering installation and after-sales,service.Our main staineless steel products includ the Extraction tank,concentrator,reaction kettle,Mixing and dispersing equipment,Emulsification machine,Sanitary pump,Colloid mill,ect.Zhonghao adhere to the people-oriented,has served thousands of enterprises.We rely on our own strength, high quality and quality service to win confidence and praise of the global chemical,pharmaceutical,food,environmental manufaturers.
